Stamping Dies vs. Punching

High-Volume Copper Busbar Production

In the world of electrical systems, copper busbars are critical components, delivering power efficiently in applications like electric vehicles, data centers, and renewable energy systems. For manufacturers producing 15,000–20,000 busbars annually, choosing the right production method is key to balancing cost, efficiency, and quality. Two common metalworking processes—stamping and punching—are often considered, but which is best for high-volume copper busbar production? Let’s explore why stamping dies are the superior choice for large-scale operations.

Understanding Stamping and Punching

Stamping: Precision at Scale

Stamping uses a press machine and custom-designed dies to shape, cut, or form copper bar, coil and or strips of metal into busbars. The process involves placing the metal sheet between two die components, with a mechanical or hydraulic press applying force to create precise shapes, bends, or cuts in a single operation. Stamping is ideal for producing simple and or complex busbar designs with consistent accuracy.

Key Benefits:

• High Efficiency: Once the die is set up, stamping produces busbars rapidly, minimizing cycle times.
• Cost-Effective for Volume: While initial die design and tooling involve upfront costs, these are amortized over high production runs, reducing per-unit costs.
• Versatility: Stamping can incorporate multiple features—cuts, bends, or embossing—in one pass, eliminating secondary processing.

Punching: Flexible but Limited

Punching employs a punch and die set to cut holes or simple shapes in copper sheet metal. The punch strikes the metal, removing material to create openings or basic contours in a single-step process. Punching machines are widely used for their adaptability to varied designs.

Key Benefits of Punching:

• Flexibility: Ideal for custom designs or smaller runs, with minimal tooling changes.
• Lower Initial Costs: Requires less upfront investment compared to custom dies.
• Long Bar Capability: Can handle 12-foot busbars without issue.

Drawbacks:

• For high-volume parts with multiple features (e.g., numerous holes or slots), punching one hole at a time can congest the machine, slowing production.
• Clamping mechanisms may reduce material yield, as they require space to secure the bar.
• Multiple operations increase cycle times, raising per-unit costs in high-volume scenarios.

Why Stamping Dies Excel for High-Volume, Simple/Complex Busbars

For manufacturers producing 15,000–20,000 copper busbars annually, especially those with multiple holes or features, stamping dies offer compelling advantages over punching machines like Boschert, EHRT, or Franklin busbar punching machines:

1. Eliminating Congestion: Punching machines process one hole at a time, which can bottleneck production for parts with numerous features (e.g., multiple holes or slots). A stamping die punches all features in a single hit, dramatically speeding up production.
2. Cost Efficiency at Scale: The upfront investment in a custom stamping die is offset by lower per-unit costs in high-volume runs. For 15,000–20,000 units, stamping becomes more economical than punching’s repetitive, single-hole process.
3. Better Material Yield: Stamping dies don’t require clamping mechanisms, allowing for more efficient use of 12-foot pre-plated or bare copper busbars, reducing waste and improving yield.
4. Scalability for Complex Designs: As busbar designs grow more intricate (e.g., with multiple slots or holes), stamping’s single-operation capability shines, reducing labor and secondary processing costs.
5. Consistency for Demanding Industries: Stamping ensures precise, uniform busbars, critical for applications like EV battery systems or data center power distribution.

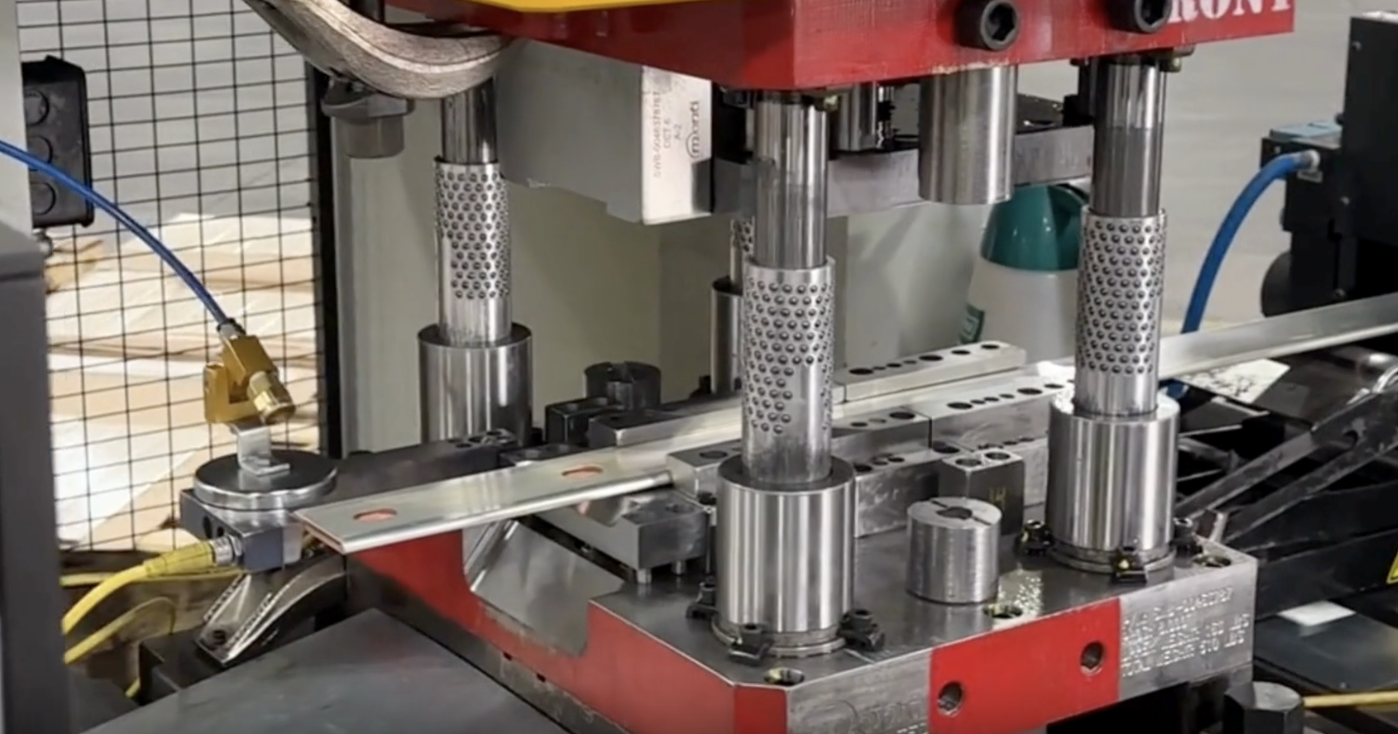

For example, consider a busbar with multiple holes and slots. A Boschert Profi machine would punch each feature individually or in a small cluster, increasing cycle time and congestion. A custom stamping die, however, can produce the same part in one operation, boosting efficiency and reducing costs for high-volume production. [Watch a short video of a stamping die in action, producing a busbar with two slots—imagine the time savings with even more features!]

When to Choose Punching

Punching remains a strong choice for manufacturers with lower volumes (below 5,000 units of annual usage) or frequent design changes. Its flexibility suits prototyping or custom orders, but for 5,000–20,000 units annually, the higher per-unit costs and slower production make it less competitive.

Stamping Dies for the Win

For manufacturers targeting 5,000–20,000 copper busbars annually, stamping dies are the clear choice. Their ability to produce complex, precise busbars at scale, combined with low per-unit costs, makes them ideal for high-volume production. While punching offers flexibility for smaller runs, it can’t match stamping’s efficiency for large-scale operations. By investing in stamping dies, manufacturers can meet growing demand while optimizing costs and quality.

Ready to streamline your copper busbar production? Contact Monti to explore how our advanced stamping solutions can power your next project.
